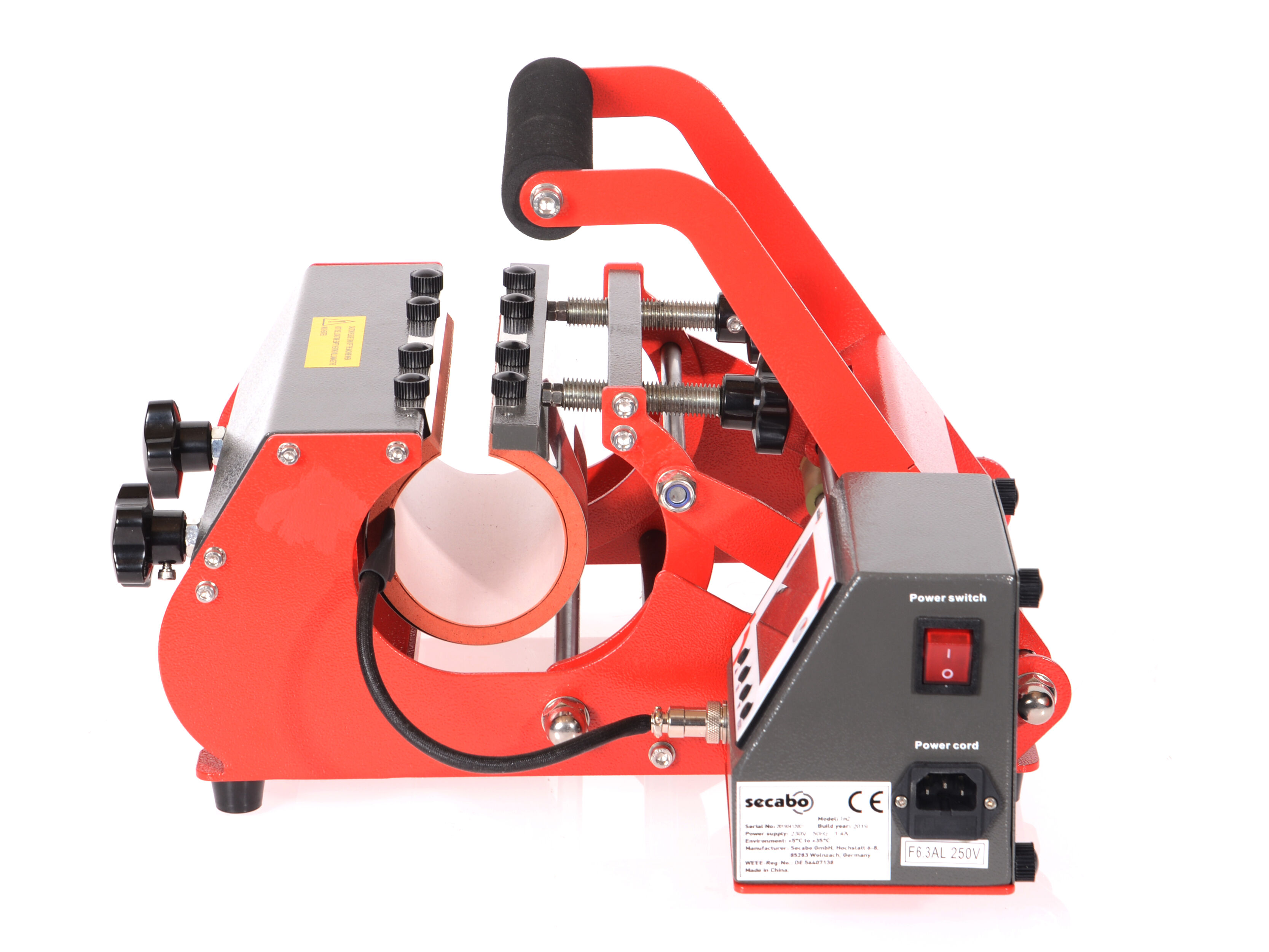

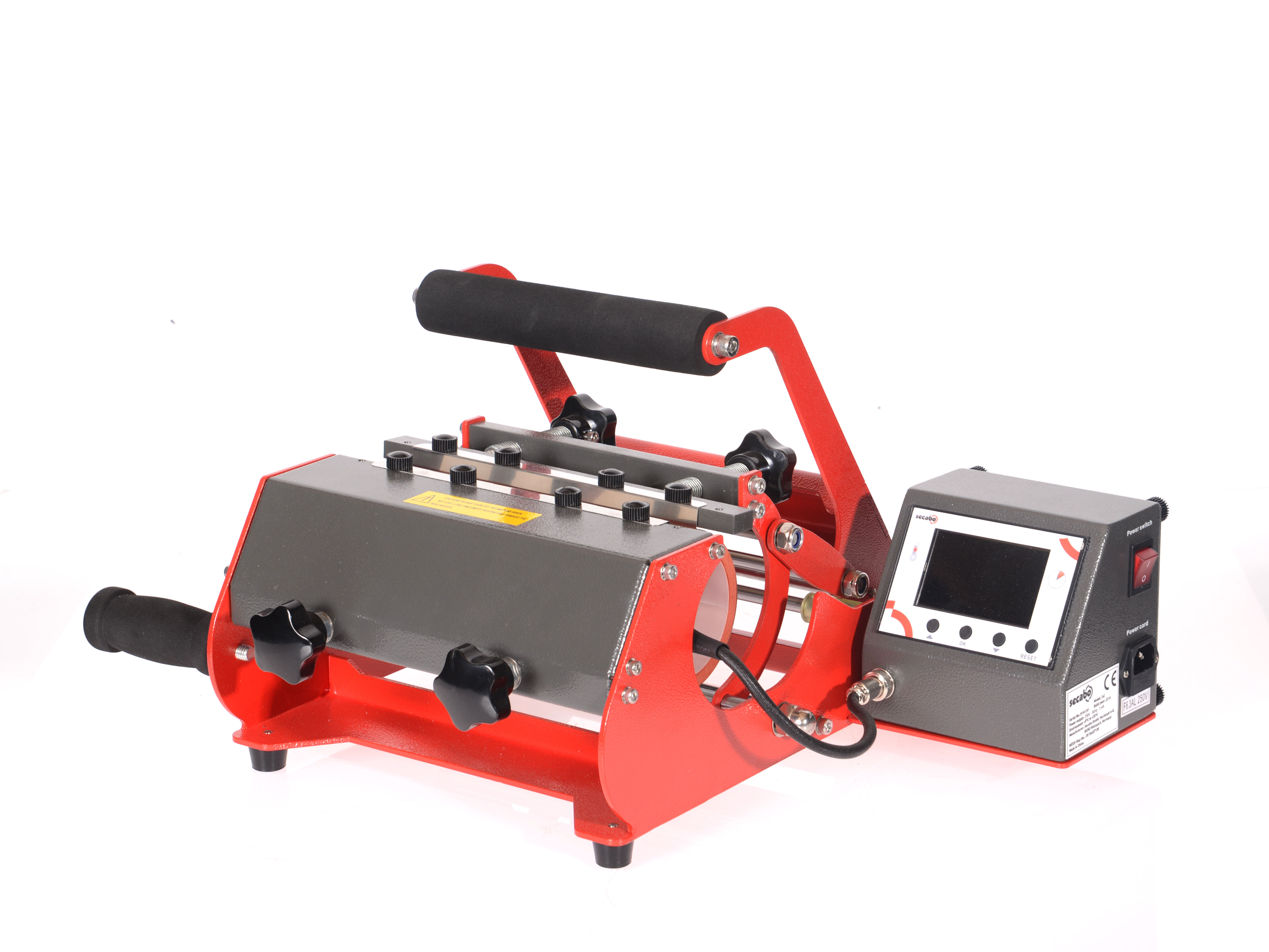

Secabo TM2 mug press
The TM2 cup press from Secabo has an extra wide heating element, so 2 cups can be printed at the same time - or a mug or a large cup with a height of up to 21 cm. Whether beginner or professional - with the TM2 sublimation transfers on ceramic cups and similar objects succeed particularly efficiently. The digital controller controls temperature and time precisely and reliably. The contact pressure can be easily adjusted via a handwheel. The device is supplied with a sleeve for cups with a capacity of 325 ml. Optionally, 6 additional heating elements in different sizes are available, also for conical cups. Our recommendation: Only switch on the heat press for actual use, as this will protect the heating element and save energy.
Whether you are a beginner or a professional - the TM2 makes sublimation transfers on ceramic cups and similar objects particularly efficient. The TM2 cup press from Secabo is ideal for sublimation transfers on 2 ceramic cups at the same time! Its wide heating element also allows the pressing of larger vessels such as beer mugs and similar objects.
The device is supplied with a sleeve for cups with capacity 325 ml. Optionally, 6 additional heating elements are available in different sizes, also for conical cups. These can be replaced manually very quickly by simply loosening the small black screws and installing another heating element. The working pressure is easy to regulate - always matching the transfer object and the transfer process. For this purpose, there are 4 small handwheels at the front and in the center of the device to adjust the pressure individually.
The digital controller controls temperature and time accurately and safely. It also enables counting of the pressing processes in order to maintain an overview during larger productions. Our recommendation: Only switch on the heat press for actual use, as this protects the heating element and saves energy.
Exchangeable heating sleeves available - in several diameters, also conical.
The safety and quality of this device is constantly monitored - according to German safety standards.
The work pressure is easy to adjust - in each case matching the transfer object and procedure.
Duration and temperature can easily be adjusted and monitored using the digital controller.
The extra wide heating element allows multiple transfers at the same time.
| dimensions | 60,5cm x 42,8cm x 29,7cm |
| max. mug height | 21 cm |
| max. cup diameter | 7,5 cm to 9,0 cm cm |
| Options | Heating element for espresso cups, 4,5cm - 5,5cm; Heating element for large conical cups 5,5/8,0cm - 6,5/9cm; Heating element for cups 60mm - 75mm; Heating element for conical cups 5,5/9,0cm - 6,5/10,5cm |
| scope of delivery | Cup press, heating element for 2 cups, 7,5 - 9,0cm, power cable, instruction manual |
| max temperature | 225 °C |
| maximum time preset | 999 s |
| power supply | 230V / 50Hz - 60Hz, 300W |
| environment | +5°C - +35°C / 30% - 70% humidity |
| weight without packaging | 10 kg |
| weight with package | 15,00 kg |
| Brand | Secabo |
A heat press, transfers text, logos or images onto different materials. The device works with pressure as well as heat in order to achieve long-lasting results. A heat press is like a large iron, but with more pressure and more intensive heat. Heat presses are suited for a wide range of transfer processes.
motives from flock or flex material or decals can be transferred to garments with the heat press. E.g. soccer jerzys can be decorated with names, numbers or the club's logo
sublimation transfer:In this process, the heat press transfers graphics, photos and texts that have been printed on a commercially available printer to polyester materials. Printing requires nothing more than special sublimation inks. The heat created by the heat press causes the ink to dye polyester materials. In addition to clothing, this procedure is also suitable for individually designing cups, puzzles, mouse pads, tableware and much more. Please note that this procedure should only be used on bright, preferably white materials, to facilitate a realistic color reproduction.
Inkjet flex:A design is cut out of an inkjet flex foil and then transferred to a piece of clothing using a heat press. The highlight: Regular ink from a normal printer is preserved by special varnish beads inside the inkjet flex foil through the transfer process. This facilitates the production of durable textile finishes in photo quality with simplest means. One might, for example, design a soccer fan shirt with a country pennant.such as a country pennant on a soccer fan shirt, etc.
Chromablast Transfer:A design is cut out of an inkjet flex foil and then transferred to a piece of clothing using a heat press. The highlight: Regular ink from a normal printer is preserved by special varnish beads inside the inkjet flex foil through the transfer process. This facilitates the production of durable textile finishes in photo quality with simplest means. One might, for example, design a soccer fan shirt with a country pennant.such as a country pennant on a soccer fan shirt, etc.
The uses and possibilities of a heat press are as diverse as the various different transfer methods that exist. Heat presses allow both professionals and ambitious hobbyists to make their personal design ideas a reality, such as for example:
Creative design of cups and mugs
Individual design of mouse pads
Processing and design of clothing such as T-shirts, jackets or sweaters, for example, for bands, schools, work clothes, designer collections
durable garment decoration with motives from flock or flex - ideal for sport clubs
Creation of personal Hat
Design your own towels and bathroom textiles
Creative design of large-scale photo motifs on bathroom or kitchen tiles
create your individual bags
When choosing the appropriate heat press, the shape of the receiving material and the size of the objects to be transferred are key factors. Folding presses or swing presses are used to finish flat materials, such as textiles or tiles, with a personalized design. The Secabo TC 2 heat press, for example, is a reliable entry-level folding press for smaller designs. The Secabo TC 5 heat press is suitable for larger designs. There are special mug presses that perfectly adapt to the shape of a mug to allow for creating an individualized mug collection, such as the Secabo TMUG heat press.
